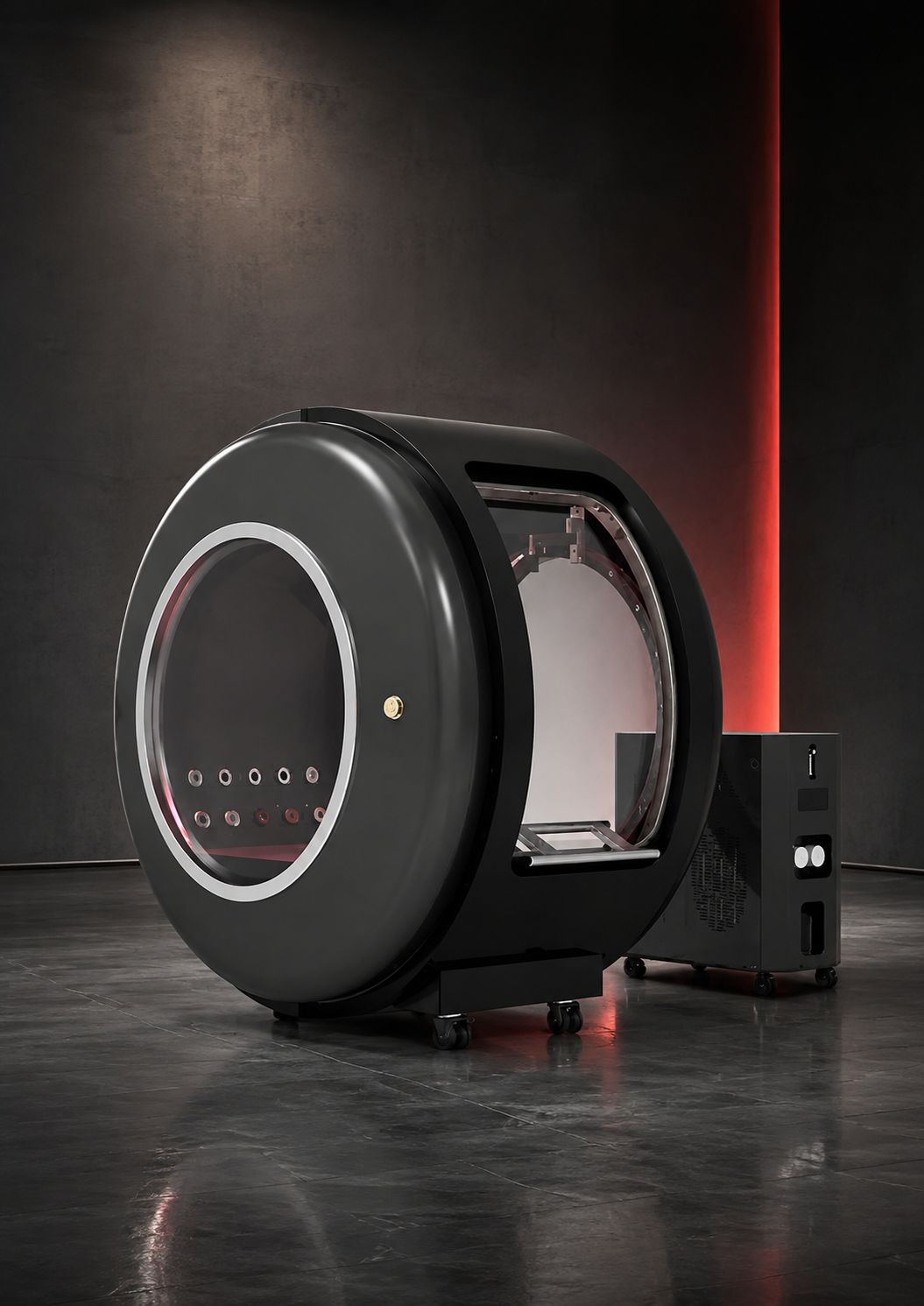

• OXY-CY4 mini single person oxygen chamber with oxygen concentrator

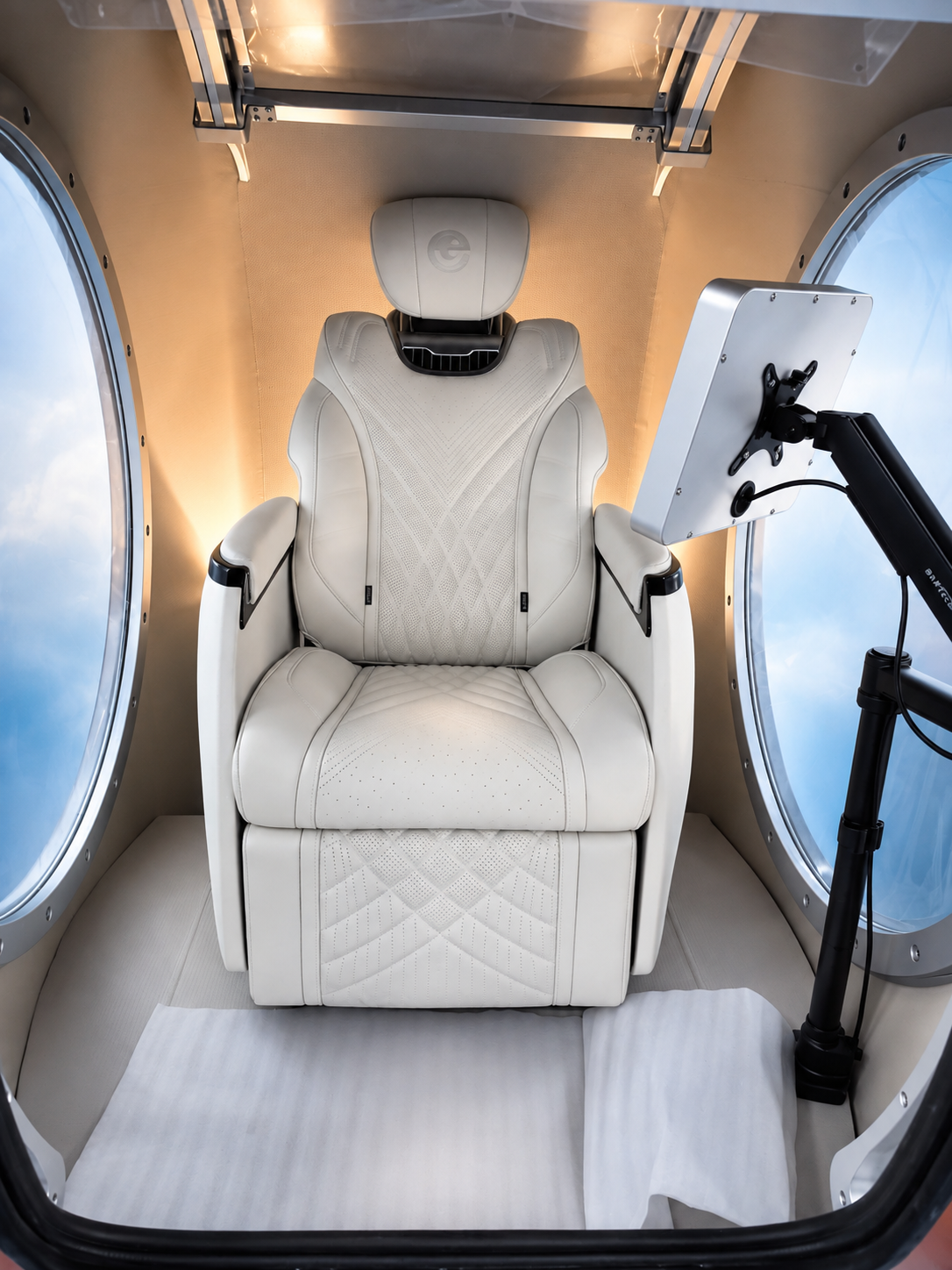

  • OXY-CY4 interior with zero-gravity seat
1 2

OXY-CY4 Mini Single Person Oxygen Chamber

Starting from AED 112,000.00

Enquire on WhatsApp
Restore Approved
Free Delivery

Mini single-person oxygen chamber with a push-pull pressure-seal inlet door, automatic pneumatic control, and a two-way communication intercom. Provides concentrated oxygen under pressure via an oxygen delivery headset or mask.  With an ultra-quiet exhaust valve and easy installation.  Standard configuration includes a fixed sofa, interior lighting and decoration, carpet, wireless intercom and water-cooled air conditioning.

How to use
  • Confirm suitability with Restore before your first session
  • Enter through the push-pull door and take a seat
  • Choose your working pressure: 1.3, 1.5 or 2.0 ATA
  • Put on the oxygen earphones or mask once the chamber is pressurised
  • Breathe normally, and use the two-way intercom if you need anything during the session
  • Use the emergency button to stop the session at any time
  • Keep oils, aerosols and other ignition sources away from the chamber and oxygen equipment
  • Speak to a clinician first if you are pregnant, or managing ear or sinus problems, lung disease, a seizure history, recent surgery or implanted devices

Pro tip:

Build up gradually. Start at the lower pressure setting and a shorter session while you get used to the chamber.

Key benefits

  • Push-pull pressure-seal door

    Door opening and lowering system for straightforward entry and exit

  • Two-way communication intercom

  • Automatic pneumatic control system

  • Easy installation and operation

  • 93% oxygen delivery

    Provided under pressure through oxygen earphones or masks

  • Ultra-quiet exhaust valve

Product specs
Specification Details
Working pressure 1.3 / 1.5 / 2.0 ATA
Pressure (adjustable) 2.0 ATA / 100kPa
Size L1875mm x W1382mm x H1850mm
Weight 750kg
Hull material Stainless steel
Frame Stainless steel frame
Cabin door Carbon steel
Color Customized color
Packing Wooden case
Safety facilities Manual safety valve, automatic safety valve, emergency button
Conversational system Telephone / Bluetooth intercom
Standard configuration Fixed sofa, illumination, interior decoration, wireless intercom, carpet, water-cooled air conditioning
Oxygen concentrator output 10L
Oxygen concentrator rated power ≈850W
Oxygen concentrator voltage/frequency 110V 60Hz / 220V 50Hz
Rapid charging flow (at 1 ATA) ≈130L/min
Oxygen flow rate (pure oxygen mode) ≥10L/min
Oxygen concentration (pure oxygen mode) 95.6%
Oxygen concentrator noise About 55 decibels
Net oxygen source weight ≈56kg
Oxygen concentrator size 420mm x 400mm x 768mm
Air conditioner voltage/frequency 220V / 50Hz
Air conditioner refrigerant R410A / 260g charge
Air conditioner rated power 660W
Warranty 2 years
After-sale service Online technical support
